Fit guide
If you want to use the On-Tube storage, these are the key dimensions that you need to check on your bike. The mounting holes are the same as standard 64mm bottle cage spacing, with 15mm of front to back adjustment. You will need about 60mm or more of clearance between the mounting bolts and whatever frame tube it is closest to.
This covers the most common critical dimensions, but obviously there are all sorts of plausible layouts and locations. If you are worried about fit, refer to the dimensions listed above. If things are really tight, we recommend cutting a rectangle out of cardboard that matches the bag dimensions, and using that as a clearance gauge on your setup.
It doesn’t have to be EXACT, since fabric will conform around some curves, but you don’t want it getting smooshed between tubes and shocks and stuff. We also recommend getting some sort of protective film (like this) to put where your bag might rub your frame or any other components.
If you don’t have enough room for the Standard On-Tube Storage, check out the Small On-Tube Storage.
If you have questions about fit, contact us.
Standard
vs.
Small

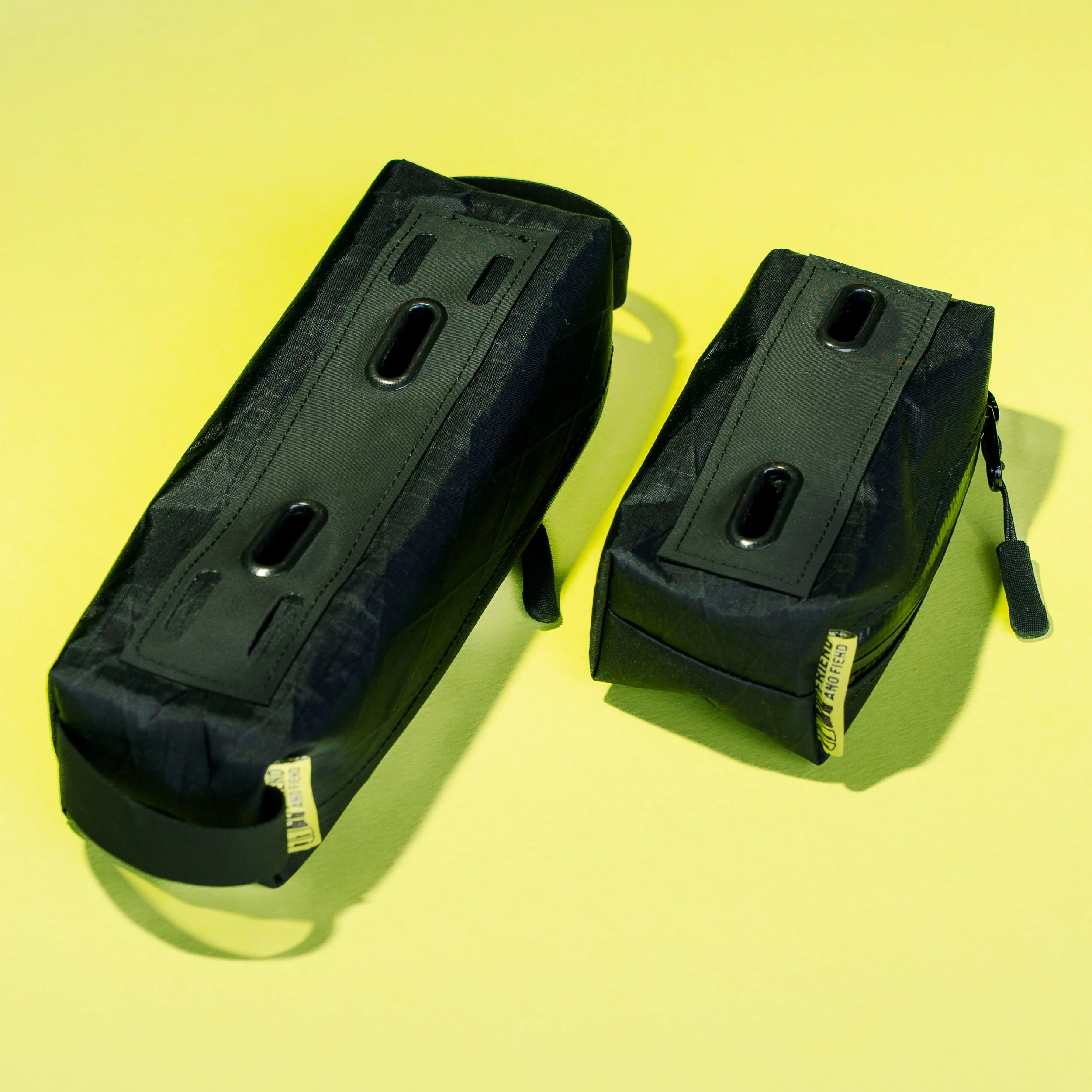

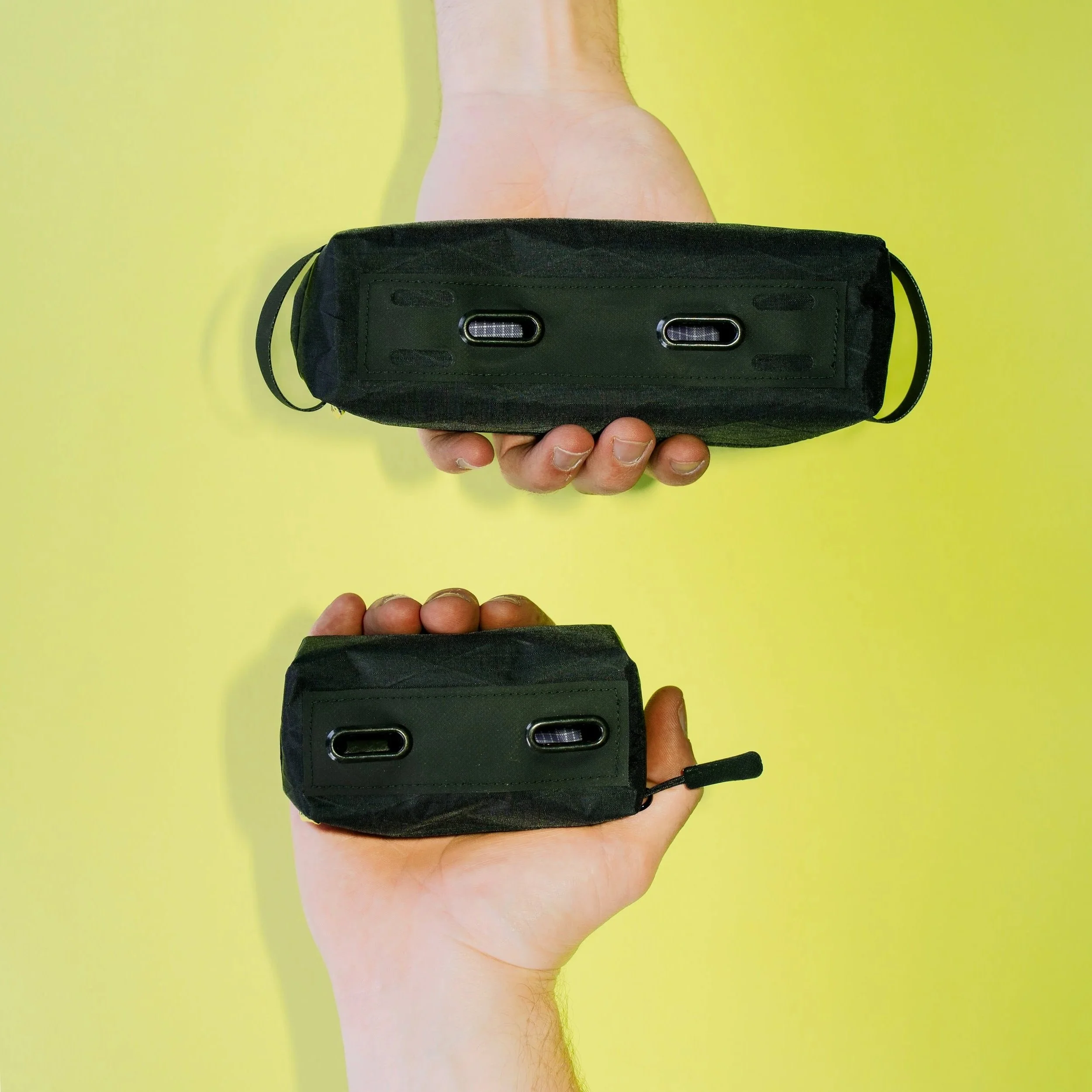

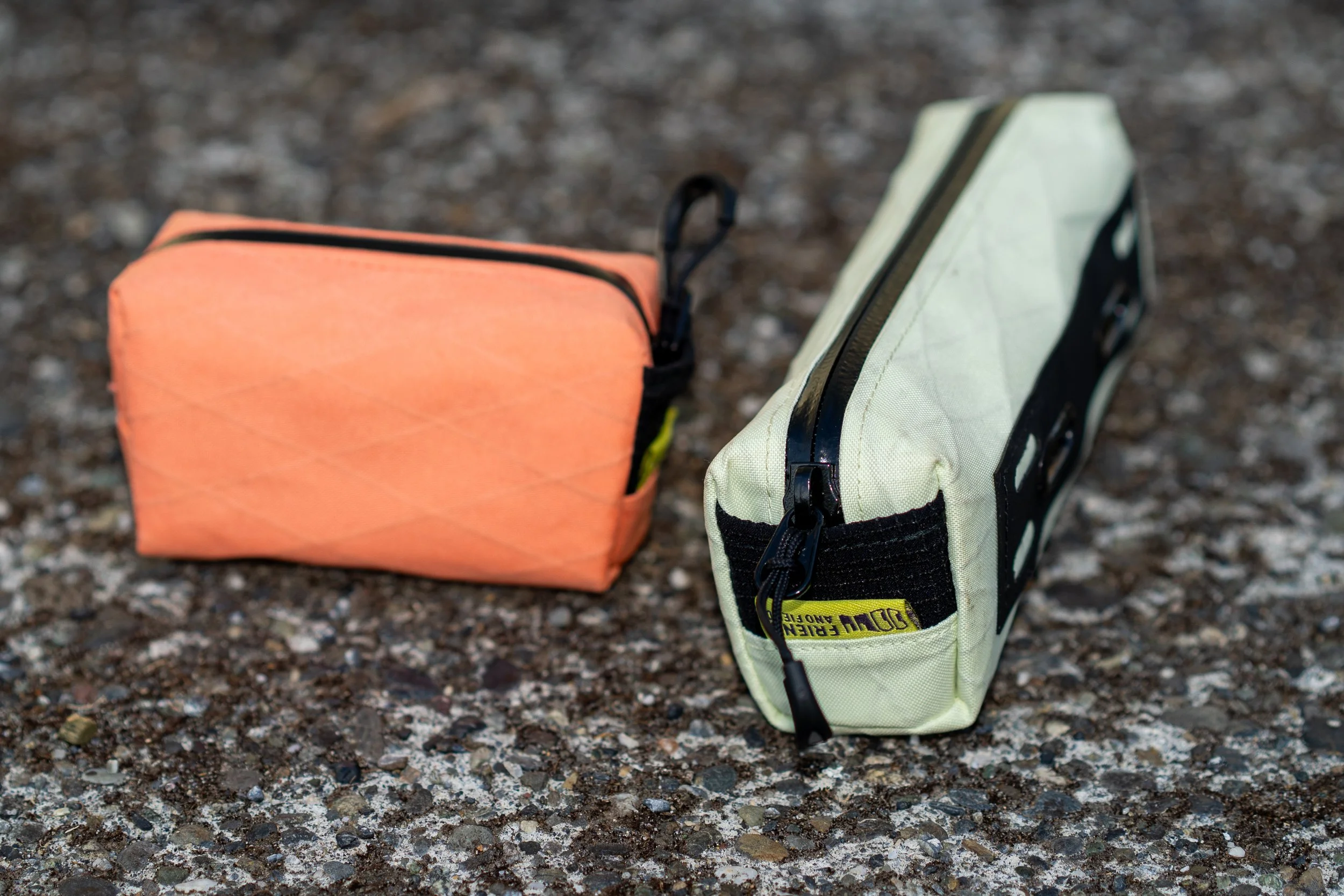

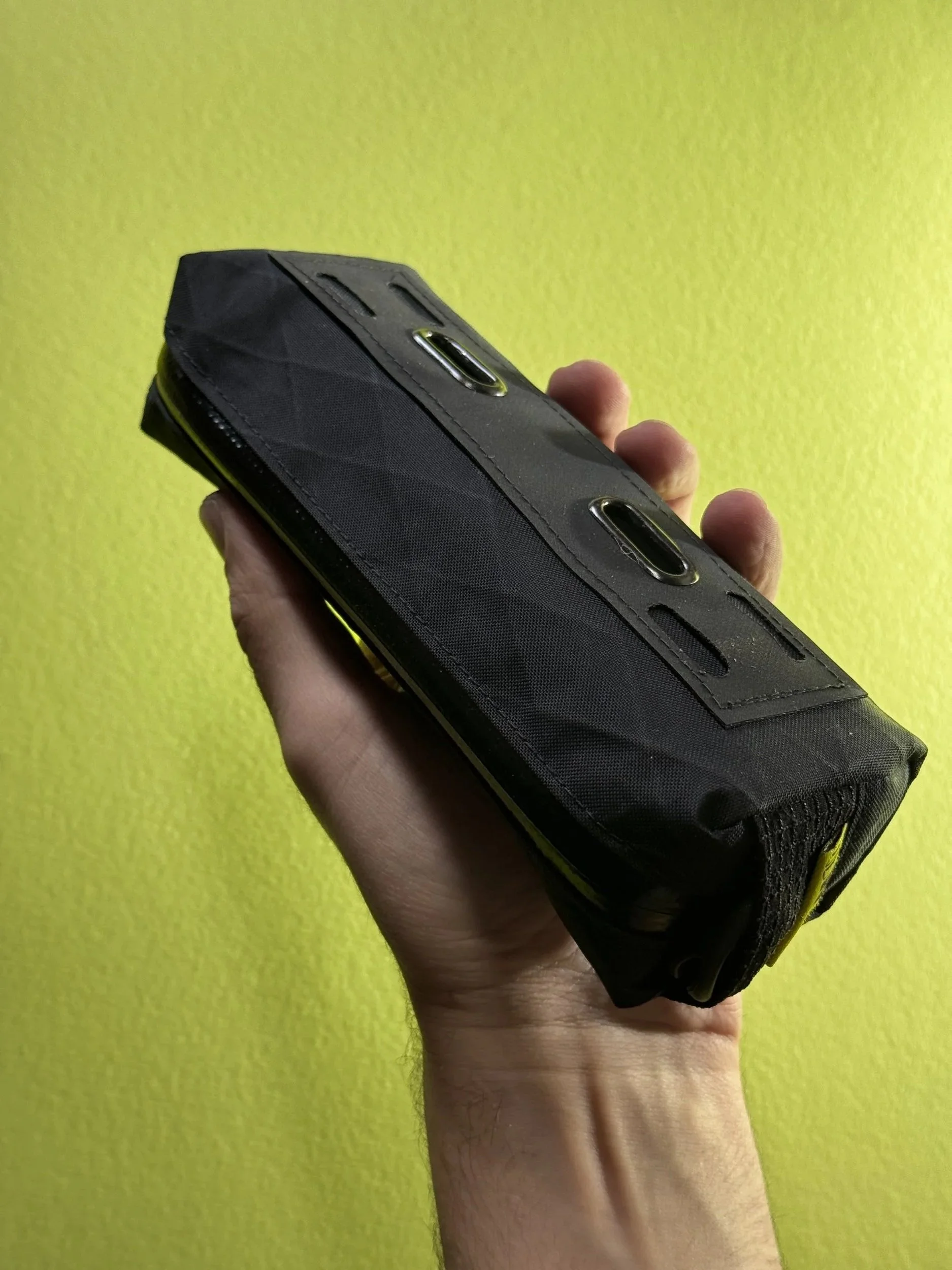

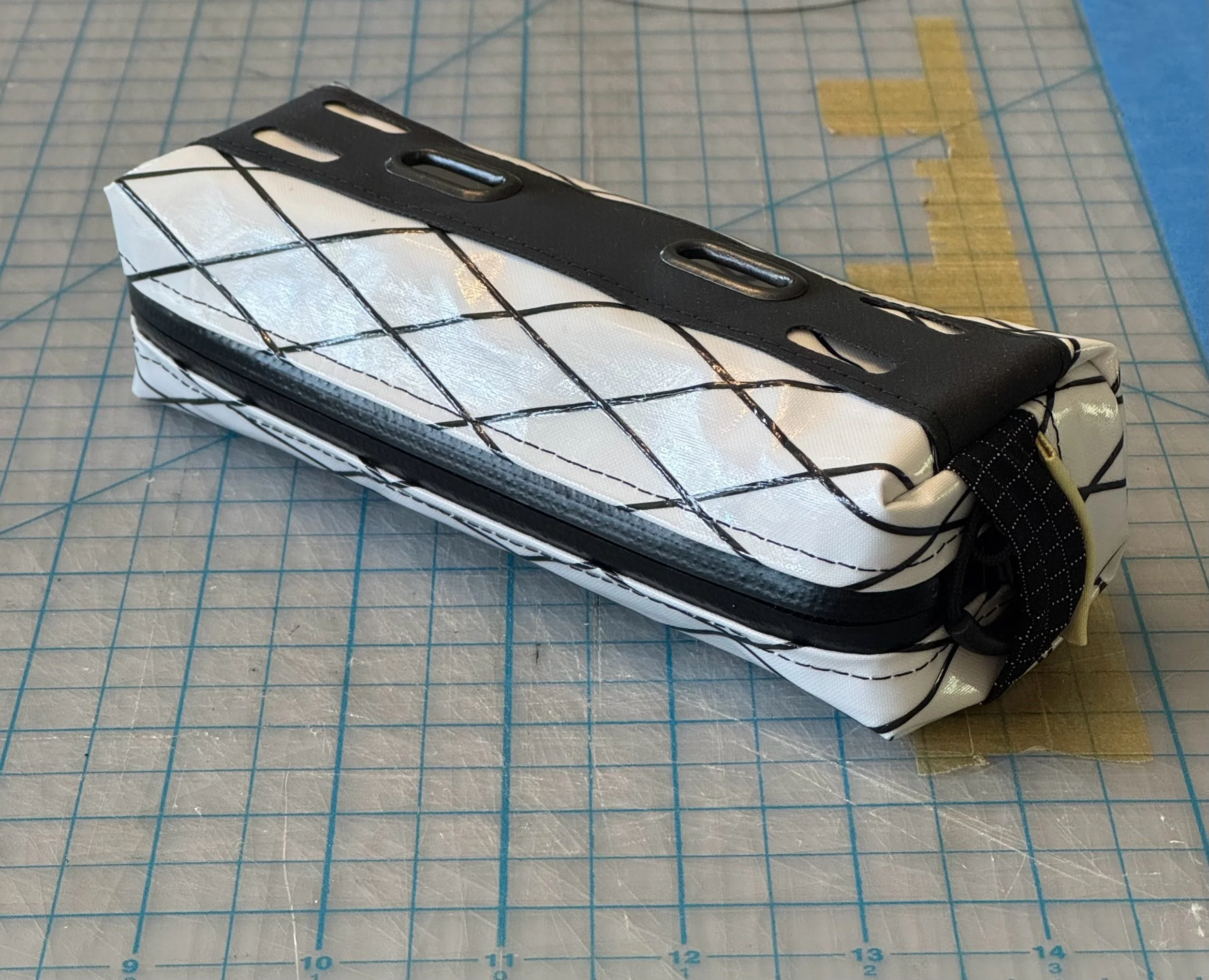

On-Tube storage comes in two sizes:
Standard: 180mm L x 50mm H x 55mm W
Small: 110mm L x 50mm H x 55mm W
